What Is the Processing Capacity of a Double Roll Crusher?

Q1: What is the processing capacity of Huashengming double roll crusher?

Huashengming double roll crusher does not have a fixed capacity value. Instead, it varies within a range depending on the model, material characteristics, and output size requirements. The full product line covers capacities from 2 to 450 tons per hour, suitable for projects of all scales.

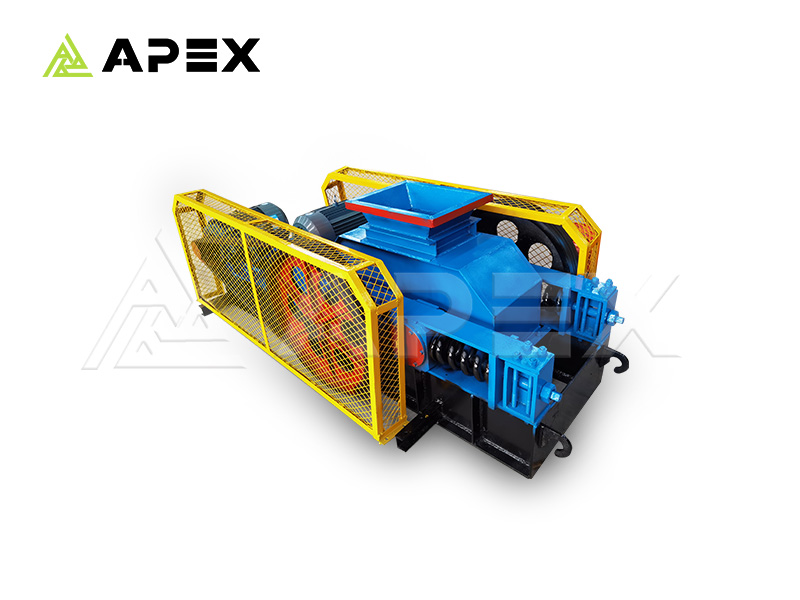

Spring Roll Crusher

Q2: What are the specific capacity ranges for different models?

Based on model and configuration, capacities are divided into the following ranges:

Small Models (Spring Type): Approximately 2-20 t/h. Suitable for small sand plants, refractory plants, or laboratory fine crushing.

Medium Spring Type: Approximately 10-50 t/h. Suitable for small to medium production lines and medium-fine crushing of conventional materials.

Medium Hydraulic Type: Approximately 20-80 t/h. Hydraulic systems provide more stable crushing force, smoother operation, and higher capacity.

Large Hydraulic Type: Up to 80-450 t/h. Designed for large quarries and large-scale concentrators, capable of handling high-intensity continuous crushing operations.

Hydraulic Double Roller Crusher

Q3: What are the key factors affecting processing capacity?

Capacity is not a fixed value. It mainly depends on the following four conditions:

Model and roll size. The diameter and length of the rolls directly determine the volume of the crushing chamber. Larger rolls process more material per cycle, resulting in higher capacity.

Material characteristics. Material hardness, brittleness, and moisture content all affect capacity. When crushing soft materials like coal or coal gangue, throughput is higher. When crushing hard materials like granite or basalt, overall throughput is relatively lower. High clay content or moisture may slightly affect the feed rate.

Feed size and output size. Smaller feed sizes allow the equipment to process more easily, resulting in higher capacity. When the required output size is finer (i.e., the roll gap is smaller), material stays longer in the crushing chamber, reducing throughput per hour.

Drive configuration. Huashengming offers spring type and fully hydraulic type configurations. Fully hydraulic double roll crushers provide stable and powerful crushing force, operate more smoothly, and often deliver higher efficiency and capacity compared to the same model with spring configuration.

Q4: How do I choose the right model for my project?

When selecting equipment, avoid blindly pursuing “maximum capacity” or “lowest price.” Matching your actual needs is the best choice. Huashengming’s technical team offers free professional evaluation. Simply provide your material type, maximum feed size, desired output size, and target capacity, and we will match you with the most suitable model. We offer multiple configuration options including high-end and standard to ensure the best cost-effectiveness in actual production.

Q5: What types of crushers are available?

Huashengming double roll crushers are available in spring type (2PGT series) and hydraulic type (2PGY series), with mobile options also available. Equipment is also offered in three configuration levels: high-end, standard, and basic, allowing customers to choose based on budget and operating conditions.
